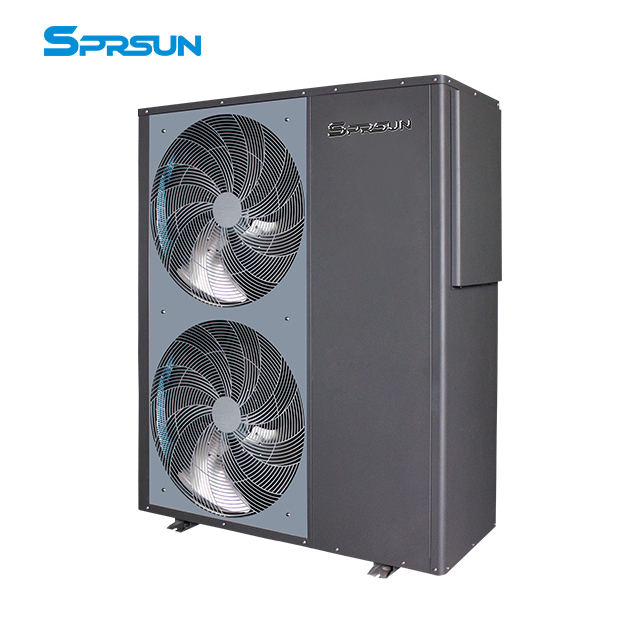

CGK050V3L CGK-050V3L
SPRSUN
This SPRSUN DC inverter heat pumps function more efficiently and cleanly thanks to the new refrigerant gas R32, which also has no potential to deplete the ozone and lowers carbon emissions. This heat pump has low energy consumption and is high coefficient. It comes with a 2-5 year long warranty, making it a popular product at our website. This air to water heat pump is designed for domestic sanitary hot water, house heating and house cooling. They could run under the temperature between -25℃ and 45℃. It has a maximum heating capacity of 20KW and a cooling capacity of 18.2KW. Take a look at this reliable heat pump!
| Model | CGK050V3L | CGK-050V3L | ||||||
| Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 - R32 | 380-420/50/3 - R32 | |||||
| Max. Heating Capacity (1) | kW | 20 | 20 | |||||
| C.O.P (1) | W/W | 4.75 | 4.76 | |||||
| Heating Capacity Min./Max.(1) | kW | 9.2 | / | 20 | 9.2 | / | 20 | |
| Heating Power Input Min./Max.(1) | W | 1549 | / | 4211 | 1546 | / | 4202 | |
| C.O.P Min./Max. (1) | W/W | 4.75 | / | 5.94 | 4.76 | / | 5.95 | |
| Max. Heating Capacity (2) | kW | 19.2 | 19.2 | |||||
| C.O.P (2) | W/W | 3.85 | 3.81 | |||||
| Heating Capacity Min./Max.(2) | kW | 8.83 | / | 19.20 | 8.83 | / | 19.20 | |
| Heating power input Min./Max.(2) | W | 1957 | / | 5053 | 1953 | / | 5042 | |
| C.O.P Min./Max. (2) | W/W | 3.80 | / | 4.51 | 3.81 | / | 4.52 | |
| Max. Cooling Capacity (3) | kW | 18.2 | 18.2 | |||||
| E.E.R (3) | W/W | 3.73 | 3.69 | |||||
| Cooling Capacity Min./Max.(3) | kW | 8.39 | / | 18.24 | 8.39 | / | 18.24 | |
| Cooling Power Input Min./Max.(3) | W | 1897 | / | 5783 | 1893 | / | 5771 | |
| E.E.R Min./Max. (3) | W/W | 3.15 | / | 4.42 | 3.16 | / | 4.43 | |
| Max. Cooling Capacity (4) | kW | 14.4 | 14.4 | |||||
| E.E.R (4) | W/W | 2.80 | 2.77 | |||||
| Cooling Capacity Min./Max.(4) | kW | 6.62 | / | 14.40 | 6.62 | / | 14.40 | |
| Cooling Power Input Min./Max.(4) | W | 1702 | / | 5371 | 1699 | / | 5360 | |
| E.E.R Min./Max. (4) | W/W | 2.68 | / | 3.89 | 2.69 | / | 3.90 | |
| Rated Current | A | 20.1 | 8.9 | |||||
| Max Current | A | 29.21 | 12.86 | |||||
| Compressor | Type - Quantity/System | Twin Rotary - 1 | Twin Rotary - 1 | |||||
| Fan | Quantity | 2 | 2 | |||||
| Airflow | m3/h | 5000 | 5000 | |||||
| Rated power | W | 200 | 200 | |||||
| Water Side Heat Exchanger | Type | Plate Heat Exchanger | Plate Heat Exchanger | |||||
| Water Pressure Drop | kPa | 23 | 23 | |||||
| Piping Connection | Inch | G1" | G1" | |||||
| Allowable Water Flow | Min./Rated./Max. | L/S | 0.60 | 0.96 | 1.59 | 0.60 | 0.96 | 1.59 |
| Noise Level | dB(A) | 61 | 61 | |||||
| Net Dimension(L×D×H) | mm | 1100*475*1355 | 1100*475*1355 | |||||
| Net Weight | Kg | 124 | 124 | |||||
| Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; | ||||||||
| (2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; | ||||||||
| (3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃; | ||||||||
| (4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃. | ||||||||
The new refrigerant gas R32 helps our DC inverter heat pumps operate more cleanly and effectively, which has less harmful effects on the atmosphere with lower carbon emissions and zero ozone depleting potential.
With maximum COP 5.95, our ERP A+++ R32 EVI DC inverter heat pumps charge and recirculate more efficiently than DC inverter heat pumps of other refrigerants. They consume less energy, and can therefore help families reduce energy bills.
The CAREL controller is able to record temperatures unaided using sensors that record the surrounding conditions. With the WIFI online monitoring, customers will enjoy contactless support from our customer service center no matter where they are. Our R32 EVI DC inverter heat pumps are also featured with more intelligent protections.
In addition to brushless DC inverter fans, SPRSUN R32 DC inverter heat pumps adopt reinforced sound reduction measures such as the dual shock absorption by Panasonic Compressor. The sound levels start as low as 42 dBA, making itself the quietest system in our DC inverter lineup.
The refrigerant R32 is considered to be environment friendly, but improper handling and storage might lead to potential safety issues. All of this can be avoid by using SPRSUN R32 DC inverter heat pumps, since they are designed with anti-explosion measures to guarantee the safety.
